Data Sheets
Shot Exploder Model 1221F
Features
The Exploder fires up to 130 Type 1 (Shock tube Initiator or Stat safe®) electric initiators/detonators connected in series, where the total circuit resistance does not exceed 120Ω.
Operation
Operation is by means of a key switch and automatically fires after a delay of 1.5-2.5 seconds. An indicator light flashes when firing takes place.
The Exploder is powered by a rechargeable battery and is capable of at least 1000 firings. The battery must be recharged with the specially designed charging cube when the firing time exceeds 2.5 seconds.
Notice and Maintenance
Warning: At least 10 seconds between successive firings should be allowed.
Exploder should only be charged with supplied charging cube
Approved for fiery mines

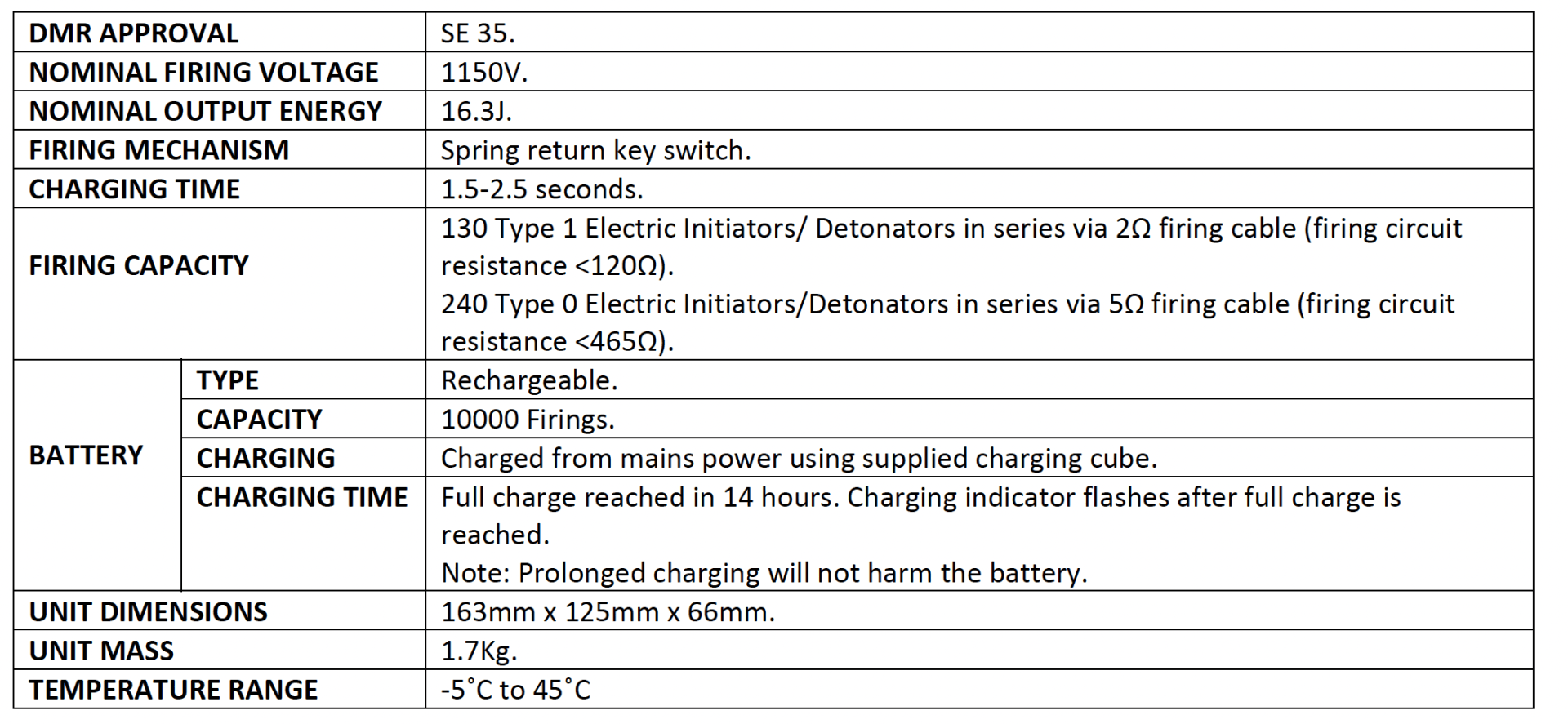

SPECIFICATIONS
Warning and Disclaimer
The information and recommendations in this document are provided for reference purposes only and should not be construed as advice to cover every application of the product or variation of conditions under which the product may be used.
