Products

Cable Management

We offer an innovative product in Cable Management. Our product is a rugged, lightweight, ergonomic, hand-held reeling device for deployment, retrieval, handling, and storage of various coil-able products. This product is deployed throughout Europe, USA, UK, and Australia and has been in service with Defence Forces throughout the world.

OVERVIEW

The Ruslyn Cordwheel® is used by Defence, Homeland security, Emergency services, Diving, Mining, Audio visual, Broadcast Industry and many other fields worldwide. The Ruslyn Cordwheel is NATO codified NSN 8130/661533558 and approved for use by the Army, Navy and Air Force. It is utilised for cable management of explosive ordnance disposal cables and hook and line, Detonator Cord, Igniter Cord, Firing Cable, AWG number 18 and Lead in line, divers’ life line, communications and data cable, audio/visual cables, power supply cables, compressed air hose, rope, NDT tape, rope, chain, wire and safety ropes.


The Ruslyn Cordwheel® has a unique design which allows reels to be stacked together for cable management and transport in boxes and racking for storage.


A custom-made bracket is available which is NATO codified NSN 5340/661562603. The bracket is constructed using marine grade aluminium and is lightweight and extremely strong. It is supplied with 4 stainless mount screws enabling it to be fixed to vehicles, ships, planes and buildings.

  • COLOUR

    • Black
    • Red
    • Orange
    • Yellow
    • Green
    • Olive green
    • Blue
    • Beige
    • Grey

  • EXAMPLES:

    • DEFENCE: Olive green spool with black center handle and winder knob
    • EMERGENCY SERVICES: Yellow spool with red center handle and winder knob
    • AUDIO VISUAL: Black spool with black center handle and winder knob

PACK REEL

The Ruslyn Pack Reel® is mainly used throughout the world by Army, Navy and Air Force. It is a small, lightweight, rugged and ergonomic hand-held unit. Primarily this reel is used to deploy hook and line, firing cable, Detonator cord, Igniter cord, communications cable, rope, wire and cord. The Pack Reel can be attached to webbing or simply carried in a pack. The Ruslyn Pack Reel is NATO codified NSN 8130-66-159-6431.


Defence Organizations around the world have been looking for a general purpose lightweight small reel and the Ruslyn Pack Reel® meets all these requirements. It is currently used in New Zeeland, Australia, USA, Canada, The Middle East and throughout Europe.

COLOUR

PRODUCT SPECIFICATION

CORDWHEEL

• DIAMETER: 356mm

• WIDTH: 109mm

• WEIGHT: 785g

• Chemical Resistant

• UV Stabilised

• Impact Resistant

• Temp Tolerance: Strength retention - 40ËšC.Vicat
softening +150ËšC

• No Metal Components

• Material: Impact Copolymer and ABS

• Fire retardant

• Recyclable

• Signals cable WD-1/TT (Don 10): 350m

• Cat cable: 175m

• Power Cable: 175m

• Rope 10mm: 50m

• Firing cable: 250m

• Detonator cord: 175m

• Shock tube: 400m

• Air hose: 20m

• Fire hose (19&25mm): 30m

• Optical Fibre: As req.

• Audio visual cable: As req.

• Wire and chain: As req.

PRODUCT SPECIFICATION

PACK REEL

• DIAMETER: 23mm

• WIDTH: 60mm

• WEIGHT: 375g

• Chemical Resistant

• UV Stabilised

• Impact Resistant

• Temp Tolerance: Strength retention - 40ËšC.Vicat softening +150ËšC

• No Metal Components

• Material: Impact Copolymer and ABS

• Buoyancy: Positive

• Ultra Violet Light (UV) Stabilised

• Fire retardant

• Hook and line: 100m

• Firing Cable: 17m

• Detonator Cord: 35m

• Igniter Cord: 35m

• Coms Cable DON 10: 130m

• 2mm Cord: 335m

• 8mm Cord: 20m

• 10mm Cord: 12m

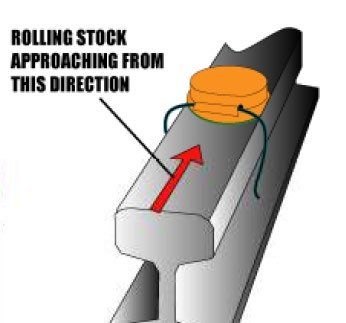

RAILWAY TRACK SIGNALS

PRODUCT DATA SHEET

PRODUCT CODE: RTS 600 RAILWAY TRACK SIGNAL 50/12/1
USE: Audible Warning Device >150 Decibels
DESCRIPTION: Orange and Green flat cylindrical case 50mm in diameter and 10mm in width. Wire attachment. Diameter: 50mm, Width: 10mm, Wire length 210mm, Gross mass: 12.5g, NEC per unit: 8g
UN NUMBER: 0193
DG CLASSIFICATION: 1.4S
STABILITY AND REACTIVITY: The product is stable and non-reactive.
TYPICAL ANALYSIS: Potassium Chlorate 30-60; Sulphur 30-60; Silica Sand 10-29; Poly Vinyl Acetate <1; Guar Gum <1
PACKAGING: Dangerous Goods UN approved packaging.
SHELVE LIFE: The shelf life of this product is 5 years, calculated from the date of manufacture if stored under normal storage conditions and in the original packaging.
Download the full data sheet

Warning and Disclaimer

The information and recommendations in this document are provided for reference purposes only and should not be construed as advice to cover every application of the product or variation of conditions under which the product may be used.

DOWNLOAD FILE

ELECTRONIC INSTRUMENTS

Electronic Instruments has become an integral part of Industry without which no Industry can safely, efficiently and effectively function. Here at NORTHWEST EXPLOSIVE TECHNOLOGIES, we made it our mission to provide our clients not only state of the art equipment but highly reliable, safe, accurate and locally manufactured equipment.


These state-of-the-art instruments have been developed using the latest technology and quality engineering techniques. They are dependable, rugged and ideally suited to local conditions. Although developed mainly for the particular needs of the South African Mining industry, these instruments are suited for use by the National Defence Force and National Police Force EOD/IED Units.


We offer a wide range of instruments such as: Blasting Circuit Testers, VOD Measurements, Hand Held Shot Exploders, Radio Controlled Blasting, Circuit Interrupter System, Personnel Conductivity Testers and Blasting Wire.

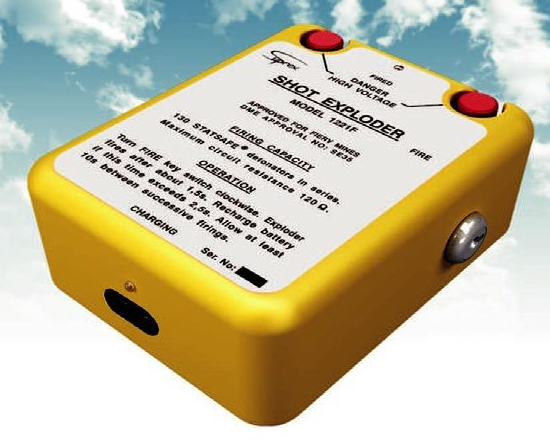

Shot Exploder Model 1221F

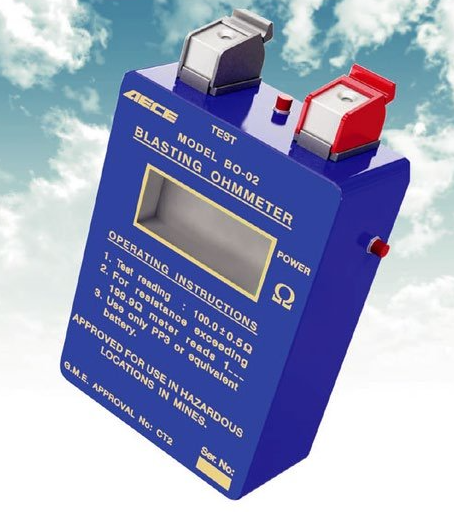

Digital Blasting Ohmmeters

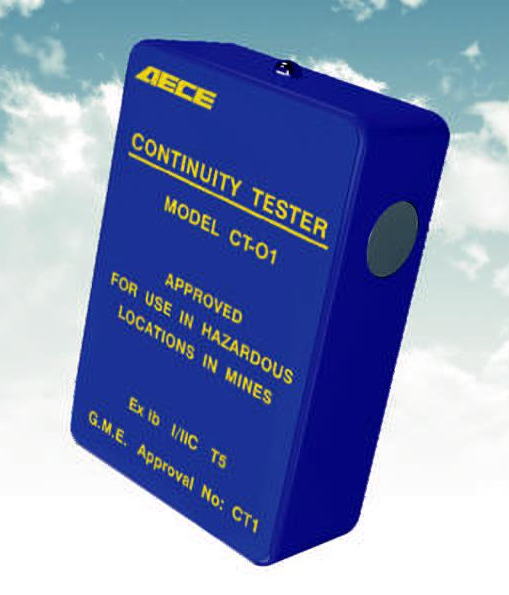

Circuit Continuity Tester Model CT-01

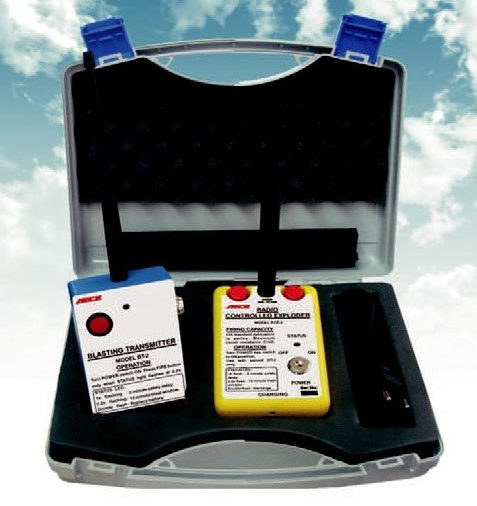

Radio Controlled Blasting Model BT-2, RCE-2

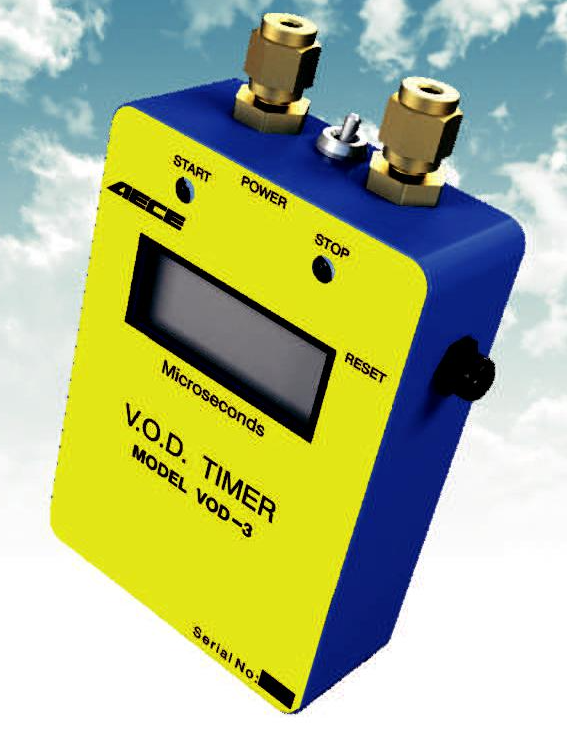

VOD TIMER MODEL VOD-3

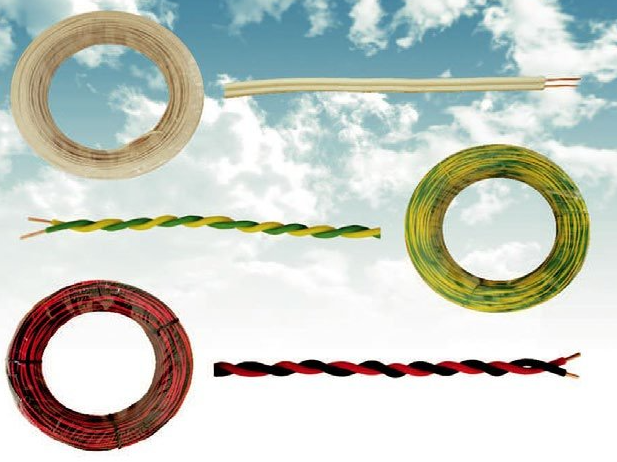

BLASTING WIRE

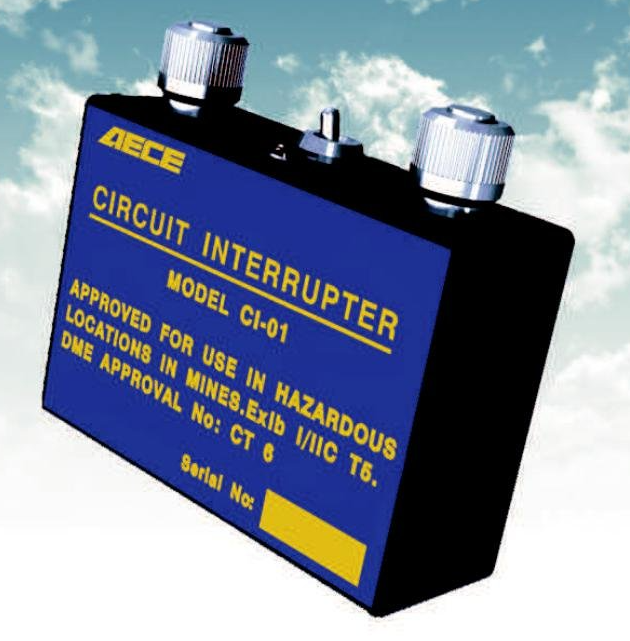

Circuit Interrupter Model CI-01

Personnel Conductivity Tester

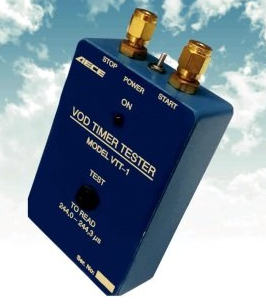

VOD Timer Tester Model VTT-1

Reloading Powders

SMOKELESS POWDER INFORMATION LOVEX BY EXPLOSIA

SINGLE BASE POWDERS

Nitrocellulose is the main ingredient (90-98%) of single base powders. Various additives such as stabilizers, surface treatment agents, flame reducing agents and ingredients affecting the burning characteristics are used as well. Most single base propellants produce at EXPLOSIA are surface coated to achieve progressiveness of burning.

SHOTGUN S015, S030, S035
HANDGUN S011, S020
RIFLE S040, S053, S060, S062, S065, S070, S071,
READ MORE

DOUBLE BASE POWDERS

In addition to nitrocellulose, double base powders contain also nitroglycerine (8-23%) as an energetic component. These powders also contain a small percentage of stabilizers or other additives as the single base powders. Double base powders are of higher energetic value than the single base powders and their ballistic performance i.

SHOTGUN D013
HANDGUN D032, D036, D037.1, D037.2
RIFLE D060, D063, D073.4, DO73.5, D073.6, D100
READ MORE

LOVEX-DRYFMIDDELS

Herlaaiers kan nou uitsien na ’n dryfmiddelreeks wat algemeen verkrygbaar en boonop meer bekostigbaar is.

Met vergunning van SA Jagters

CONTINUE READING

LOVEX S071 PROPELLANT

A slow-burning propellant suitable for a wide variety of large magnum calibers

Courtesy of SA Hunters

CONTINUE READING

LOVEX MAGNUM MAN

LOVEX single- and double-based pro- pellants are produced by Explosia in the Czech Republic and have been locally available for some time now.

Courtesy of Magnum Man (Nov/Dec 2022)

CONTINUE READING

LOVEX MAGNUM MAN

LOVEX single- and double-based pro- pellants are produced by Explosia in the Czech Republic and have been locally available for some time now.

Courtesy of Magnum Man (Nov/Dec 2023)

CONTINUE READING

Download our Reloading Guide

Download File

POWDER DESCRIPTIONS

  • SHOTGUN POWDERS

    D013

    A fast-burning, low density, double base disc propellant similar to Accurate Nitro 100 is most suitable for shotgun cartridges with 24 to 28g of shots and for some handgun cartridges.


    S015

    A fast-burning low density, single base, disc propellant similar to Accurate Solo 1000 is most suitable for shotgun cartridges with 24 to 28g of shots and for some handguns.


    S030

    A fast-burning, low density, single base tubular propellant most suitable for shotgun cartridges with 28 to 34g of shots.


    S035

    A fast-burning, low density, single base flake propellant most suitable for hunting

    shotgun cartridges with 32 to 36g of shots for 12mm calibre, also suitable for 16 and

    20mm calibres.

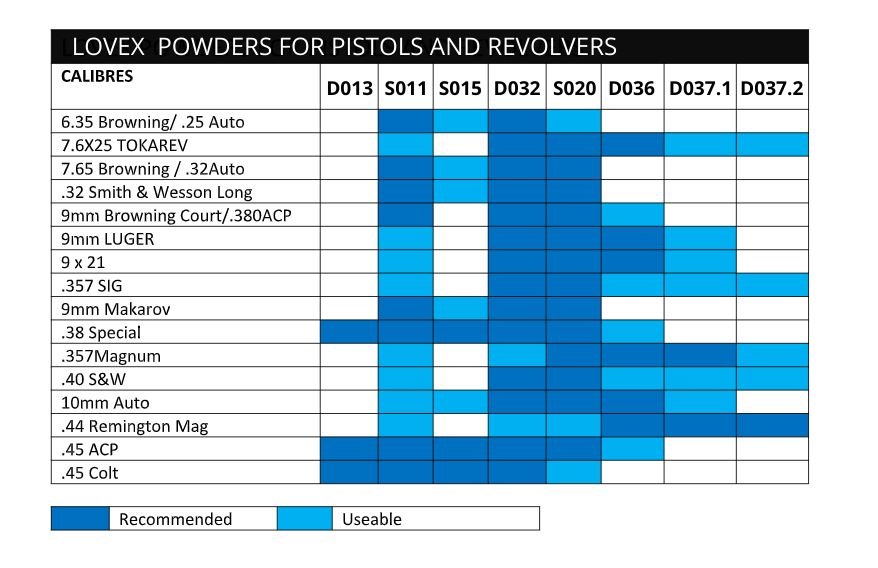

  • HANDGUN POWDERS

    S011

    A fast-burning, low density, single base, tubular propellant most suitable for .38 Special and.45 Auto cartridges. Also applicable for 7.65 Pi, 9mm Makarov, or 9mm Browning court cartridges. LOVEX fastest handgun propellant.


    D032

    A fast-burning, low density, double base, ball propellant similar to Accurate No.2. It is excellent in almost all handgun cartridges, especially where clean-burning is desirable.


    S020

    A fast burning, low density, single base, tubular propellant especially for use in the

    9mm Luger. Also suitable for many other pistol and revolver cartridges.


    D036

    A relatively fast burning, high density, double base, ball propellant similar to accurate No.5. In comparison with other LOVEX powders, it is useable in most handgun cartridges.


    D037.1

    High density, double base, ball propellant similar to Accurate No.7 designed for 9mm NATO carbine ammunition. Somewhat more specialized in applications than D032 and D036. It’s well suited to high-intensity cartridges. It is a good choice for .357, .41, and 44 Magnum cartridges, when slightly less than full powder loads are preferred.


    D037.2

    High density, double base, ball propellant similar to Accurate No.9 and is most suitable for .44Magnum. This propellant gives excellent velocities for the pressures generated and with less flash than other comparable powders. It is intended for use in large capacity handgun cartridges (.357, .41, .44 Magnum and .454 Casull). It is also suitable for some small rifle cartridges (.25-20 Winchester, .30 M1 Carbine) and the .410 Shotgun. It is the best with heavier bullets in most calibres. LOVEX slowest handgun powder.

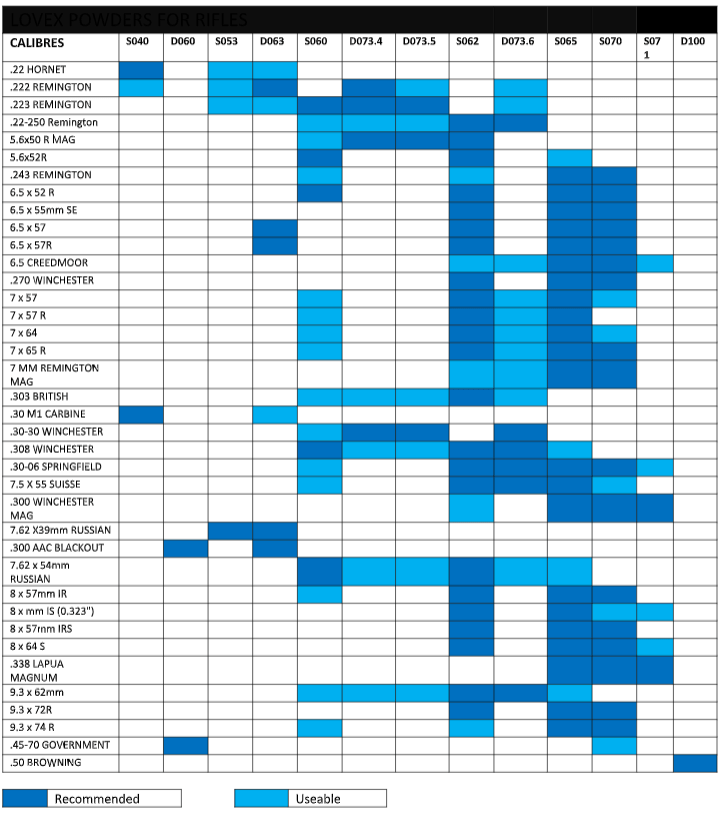

  • RIFLE POWDERS

    S040

    High density, single base, tubular propellant suitable for .22 Hornet and .30 Carbine

    cartridges and for other small rifles. Also useable in high-capacity handgun

    cartridges


    D060

    High density, double base, tubular propellant similar to Accurate 5744 designed primarily for .45-70 Government, .45-120, and .50-90 Sharps cartridges and for reduced loads in all calibre rifles.


    S053

    High density, single base, tubular propellant most suitable for 7.62 x 39 and .22 Hornet cartridges. Also suitable for small capacity cartridges such as the T/CU series, the .222 Remington, and the .223 Remington with lighter bullets.


    D063

    High density, double base propellant, ball propellant similar to Accurate 1680 suitable for 7.62 x 39 and .22 Hornet cartridges. Also suitable for small capacity cartridges such as the T/CU series, the .222 Remington, and the .223 Remington with lighter bullets.


    S060

    High density, single base, tubular propellant similar to Accurate 2015. It is extremely flexible, giving excellent performance in many cartridges from .222 Remington to .458 Winchester Mag.


    D073.4

    High density, double base, ball propellant similar to Accurate 2230, which is one of the four most popular rifle powders. Designed for .223Remington (5.56 NATO).


    D073.5

    Medium burning, high density, double base, ball propellant similar to Accurate 2460 is useful in a wide variety of cartridges. It is slightly slower than D073.4 and shows a small pressure advantage over D073.4 in bores 7mm and over. Excellent in .308 Winchester, also suitable for M1 AND M14 service rifles.


    D073.6

    Medium to slow-burning. High density, double base, ball propellant similar to Accurate 2520 gives excellent results in medium capacity cartridges (.308 class) and in certain applications in large bore cartridges. It is the best choice for target shooters using 168-grain bullets in the .308 Winchester. D073.6 has a pressure curve appropriate for the use with M1 and M14 service rifles.


    S062

    High density, single base, tubular propellant similar to Accurate 4064 most suitable for 8x57 IS, .30-06, and other ball cartridges.


    S065

    High density, single base, tubular propellant most suitable for 7x57 cartridge and for other shotguns like 7x57 R, 7X65 R, and from 7x64 to 8x57 IS.


    S070

    High density, single base, tubular propellant similar to Accurate 4350 giving excellent performance from .243 Winchester and .270 Winchester cartridges to the largest Magnum cartridges.


    S071

    High density, single base, tubular propellant similar to Accurate 3100 giving excellent performance from .30-06 Springfield cartridges to the largest Magnum cartridges.


    D100

    Medium to slow-burning, high density, double base, ball propellant most suitable for.50 Browning cartridges.
