Data Sheets
Digital Blasting Ohmmeters
Models BO-01, BO-02, BO-03
Features
The Ohmmeters show the blasting circuit resistance on a large liquid crystal display, which is easily read in both daylight and poor lighting underground.
Certificates of approval for BO-01 and BO-02: GME No. CT2, CIE No. RT1.Certificates of approval for BO-03: GME No.CT8.
Operation
Connect the blasting wire to the terminals and press the power button. The LCD will display the resistance of the blasting circuit.
SABS approved and safe for testing Electric Detonators at the work place. All Rules and Regulations are to be adhered to.
Notice and Maintenance
All service work to be by authorised Electronics personnel only. Device should only be opened to replace the battery.
Exposure to temperatures above 60˚C will cause permanent damage to the liquid crystal display.

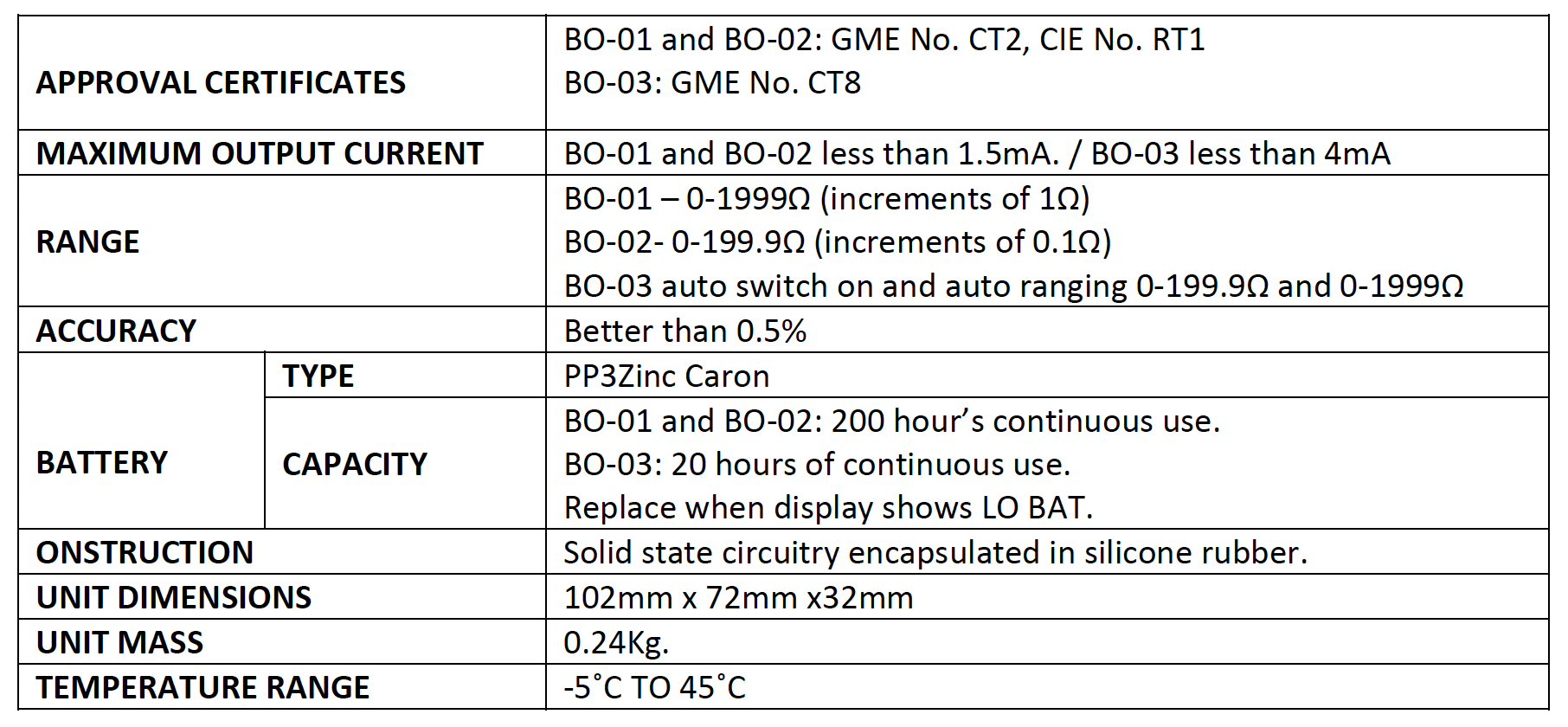

SPECIFICATIONS
Warning and Disclaimer
The information and recommendations in this document are provided for reference purposes only and should not be construed as advice to cover every application of the product or variation of conditions under which the product may be used.
