Data Sheets
Radio Controlled Blasting Model BT-2, RCE-2
Features
It consists of a hand-held transmitter and a radio-controlled initiator, both operating in the frequency range of 433MHz - 434.79MHz over the range of 1000m (line of sight).
Each transmitter/receiver pair is individually coded by the manufacturer using encryption code hopping to ensure security of the system and preventing false triggering in case of more than one set being used in close proximity
Operation
Ensure initiation area is cleared of all personnel. Arm the initiator by turning the key switch to ON. · Connect blasting circuit to initiator.
When at point of safety, press FIRE button while POWER switch is operated to fire. The STATUS light will double flash when the battery is low. Transmitter should only be opened for replacing PP3 9V Alkaline battery. Receiver can be recharged using Figure-8 cable from any standard Mains outlet.
Notice and Maintenance
Transmitter should only be opened for replacing PP3 9V Alkaline battery. Receiver can be recharged using Figure-8 cable from any standard Mains outlet.

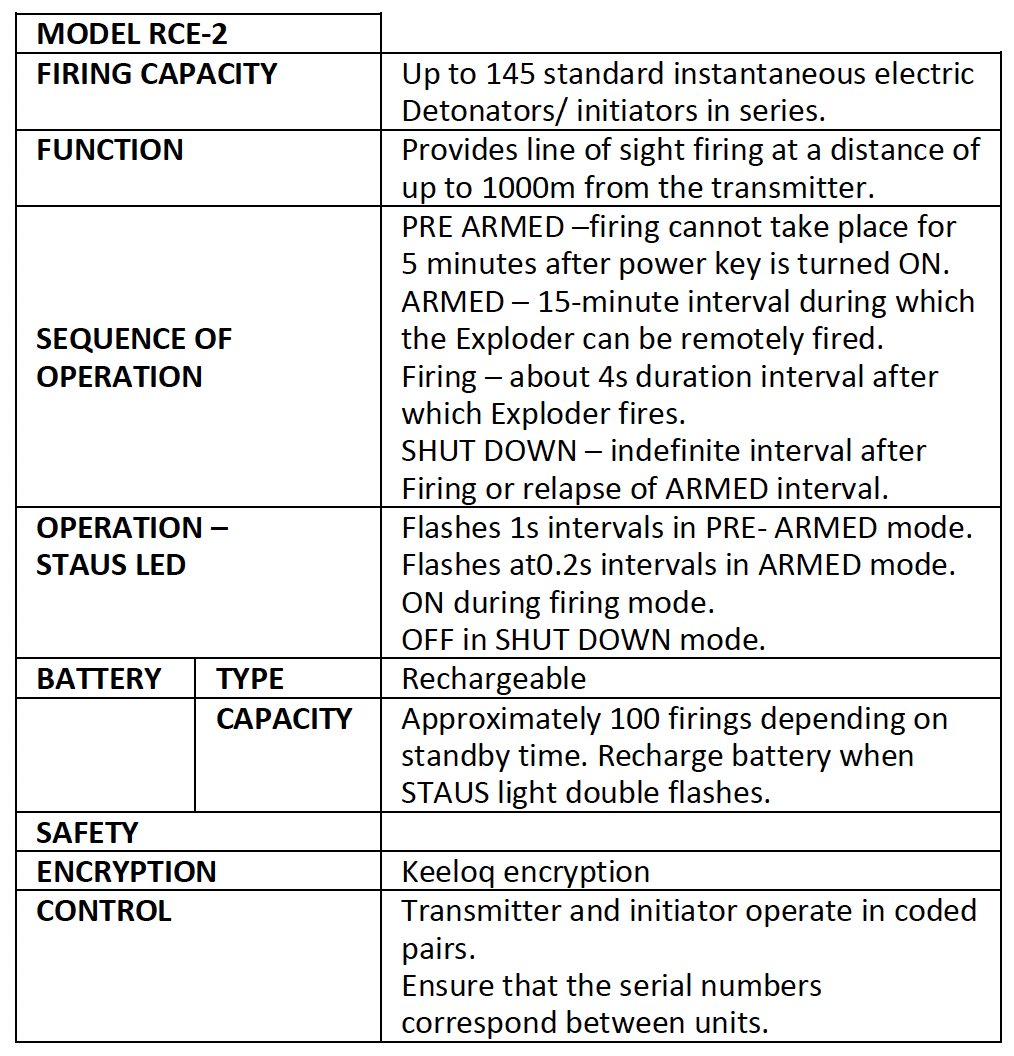

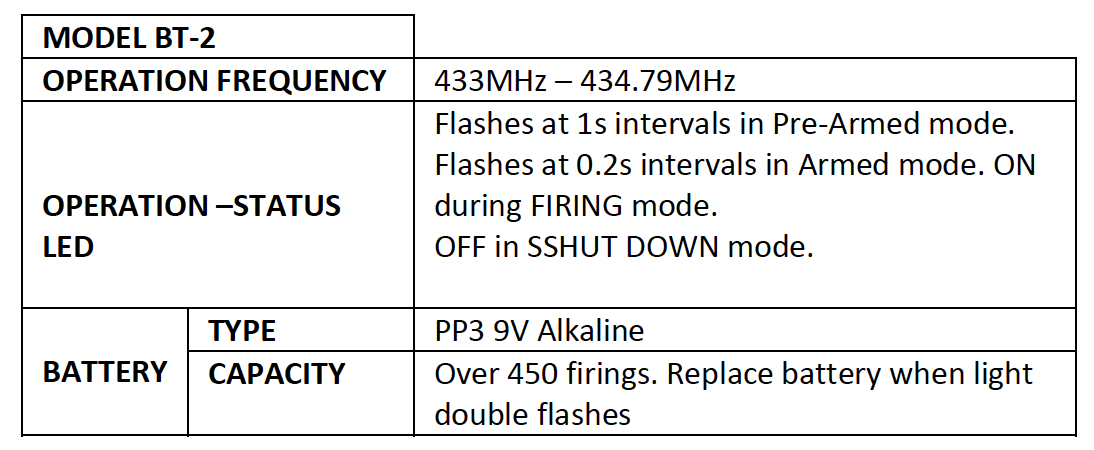

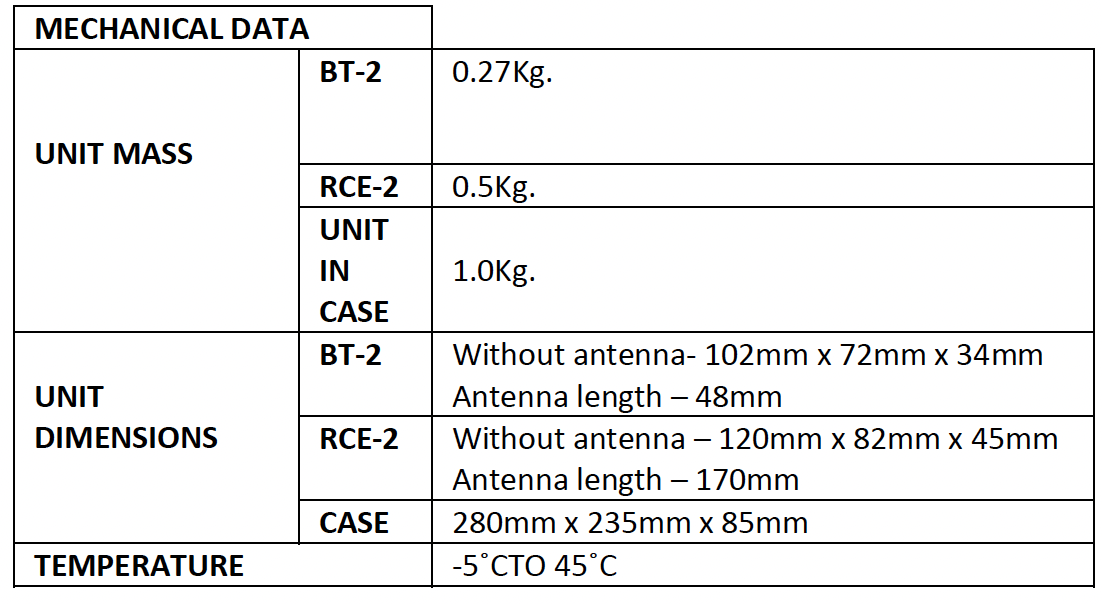

SPECIFICATIONS
Warning and Disclaimer
The information and recommendations in this document are provided for reference purposes only and should not be construed as advice to cover every application of the product or variation of conditions under which the product may be used.
